Triad's River Cooling System©
|

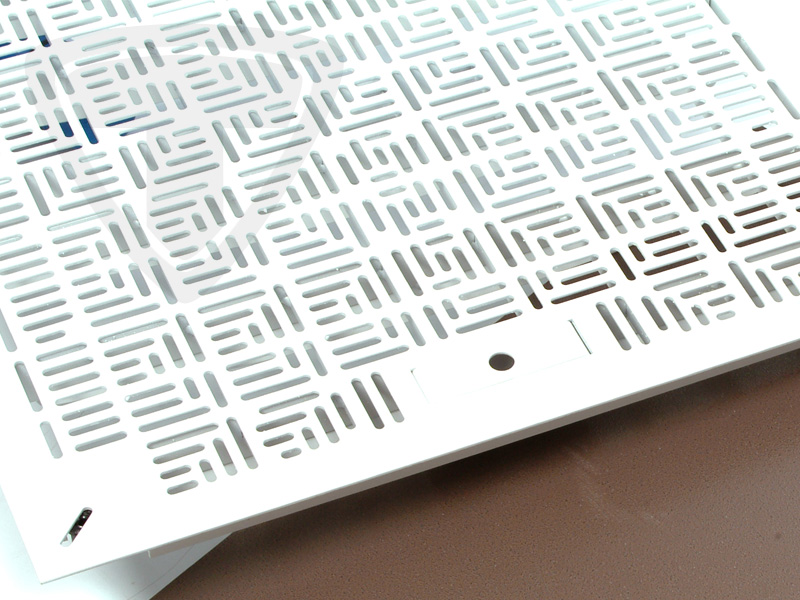

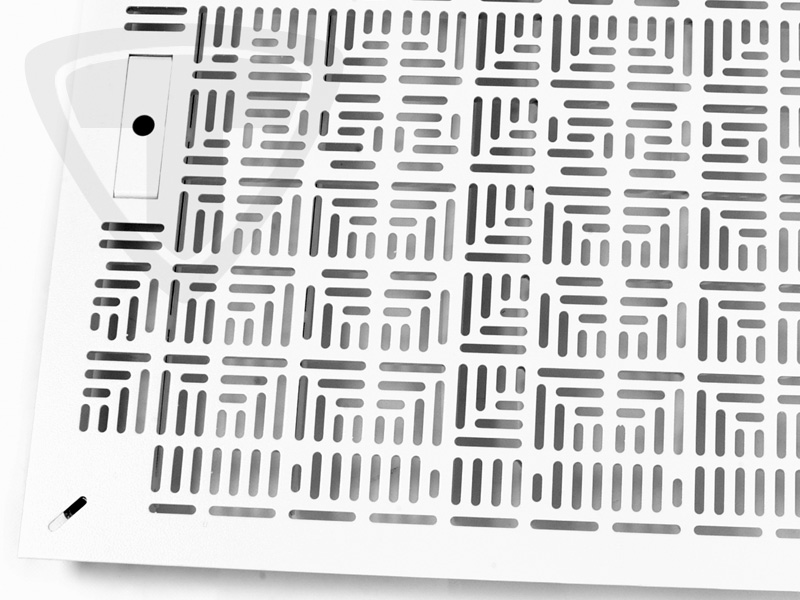

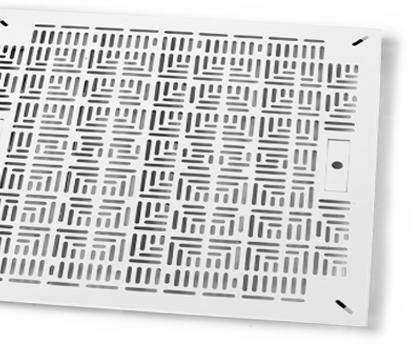

Triad's patended Chamfer ICE™ Airflow panels are designed with our proprietary River Cooling System©, to provide optimal data center and server farm hot spot cooling for any imperial or metric raised floor systems that have maximum stringer width of 1.75". These panels are built to provide 1500 to 5000 lbs. of concentrated load capacities while versatile enough to be adjusted with the patent pending corner adapters either vertically or horizontally to flush mount to most all imperial or metric raised floor systems, regardless of age. The patent pending Integrated Dual Handles provide safe, balanced lifting and placement of panel without danger of trapping fingers or toes while eliminating the need to search for suction cup lifters. Triad's Hi-Plume Stratification Fin provides increased upper server cooling dropping upper/middle/lower server temperatures 5-15 degrees while lowering energy consumption in a matter of minutes per customers reports. |
|
| Model | Load Rating | Available Features | Compatibility |
| 15TCF 30TCF 40TCF 50TCF |
*1500 lbf *3000 lbf *4000 lbf *5000 lbf |
Dual Handles Horizontal & Vertical levelers Size: 24" x 24" Hi-Plume Stratification fin Row Dampers OPD Dampers PowderPlate Finish (8 available colors) |
Compatible with all new or existing raised floor systems. |
| 15TCM 30TCM 40TCM 50TCM |
*680 kgf *1360 kgf *1493 kgf *2260 kgf Using AVDP conversion |
Dual Handles Horizontal & Vertical levelers Size: 600mm x 600mm Hi-Plume Stratification fin Row Dampers OPD Dampers PowderPlate Finish (8 available colors) |
Compatible with all new or existing raised floor systems. |
