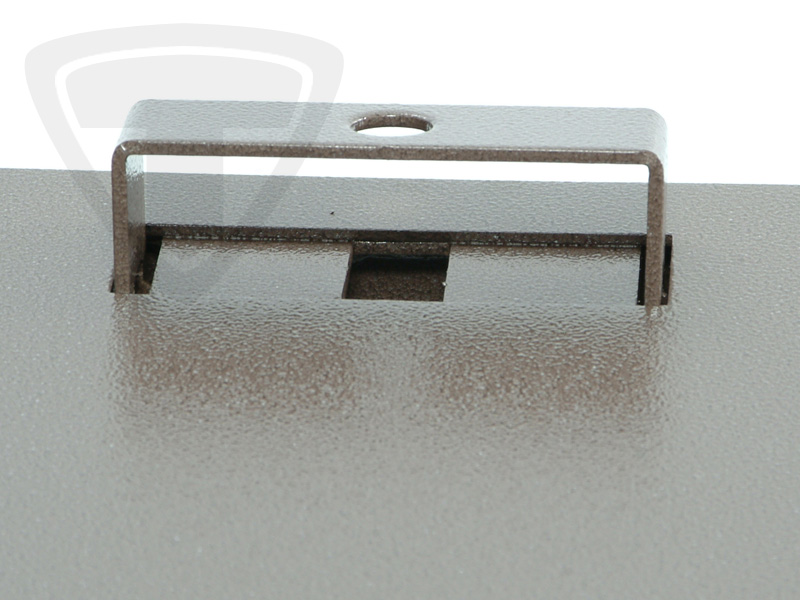

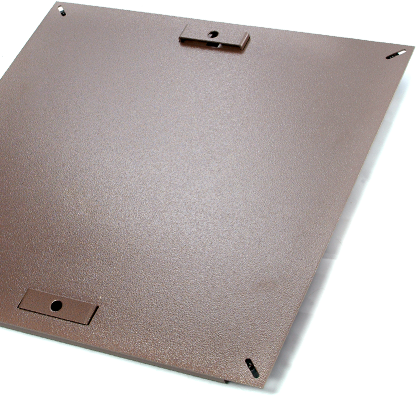

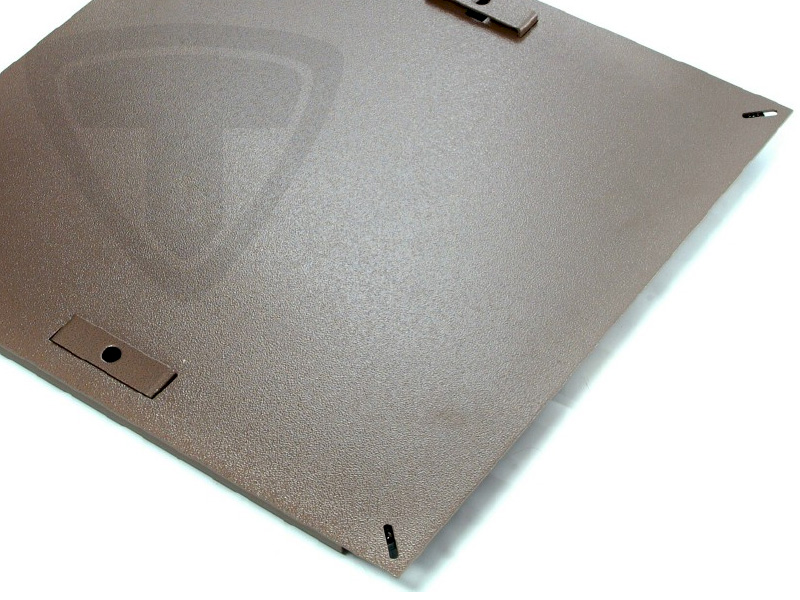

Triad's Heavy Duty Solid panel is designed to provide optimal strength for both imperial or metric raised floor system that have maximum stringer width of 1.75". The panel is built to provide up to 4000 lbs. concentrated capacities while versatile enough to be adjusted with the patent pending corner adapters either vertically or horizontally to flush mount to most all imperial or metric raised floor systems, regardless of age. The patent pending Integrated Dual Handles provide safe, balanced lifting and placement of panel without danger of trapping fingers or toes while eliminating the need to search for suction cup lifters. Triad's PowderPlate textured encapsulated finishes are electro-statically applied providing the lowest maintenance and longest lasting finish available in the industry. |
Model | Load Rating | Available Features | Compatibility |
40TSD | *4000 lbf |
Size: 24" x 24" Dual Handles Horizontal & Vertical levelers PowderPlate Finish (8 available colors) |
Compatible with all new or existing raised floor systems. |
40TSDM | *1493 kgf Using AVDP conversion |
Size: 600mm x 600mm Dual Handles Horizontal & Vertical levelers PowderPlate Finish (8 available colors) |
Compatible with all new or existing raised floor systems. |
